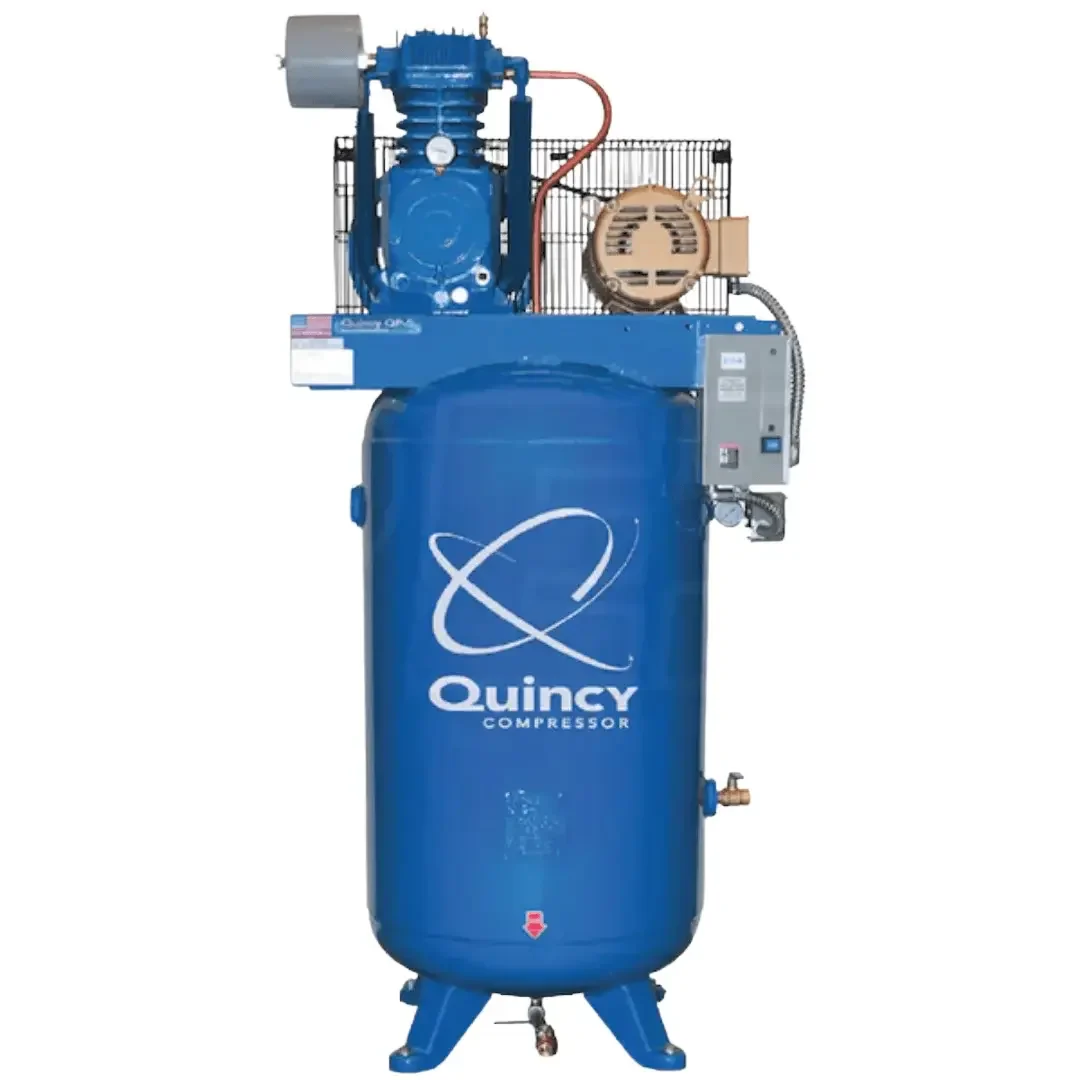

Quincy 5103D12VCA23M QP MAX 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 3-Phase)
Quincy 5103D12VCA23M QP MAX 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 3-Phase)
This QP Max model is built for serious industrial environments where uninterrupted, high-volume air is critical. Featuring a robust two-stage pump that’s pressure-lubricated, it reliably delivers approximately 35 CFM at 175 PSI, making it ideal for shops and facilities with continuous-use demands.
The 230 V three-phase motor operates at a moderate speed, cutting down on heat and vibration to extend both performance and quietness. Mounted atop a certified 120-gallon vertical tank, the system provides ample reserve air, reducing wear from frequent cycling.
Designed with durability in mind, the compressor includes high-efficiency cooling via finned intercoolers and something like a spin-on oil filter for clean, low-maintenance lubrication. A condensate drain system simplifies upkeep, and an oil-level sensor keeps the pump protected by stopping the motor if lubrication levels fall too low.
Product Features
- Fully Pressure Lubricated QP Max Package 2-Stage Compressor
- Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
- Spin-On Oil filter
- Gerator Positive Displacement Oil Pump
- Stainless Steel Reed Valves With Valve Bumpers
- Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 28 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 10 |
Pump
| CFM | 35 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Vertical |
Accessories
| Air Dryer | No |
Overview
| Weight | 850 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 40 Inches |
| Product Width | 30 Inches |
| Product Height | 75 Inches |
| Power Type | Electric |
Downloads
Brochure
Manual
Warranty
