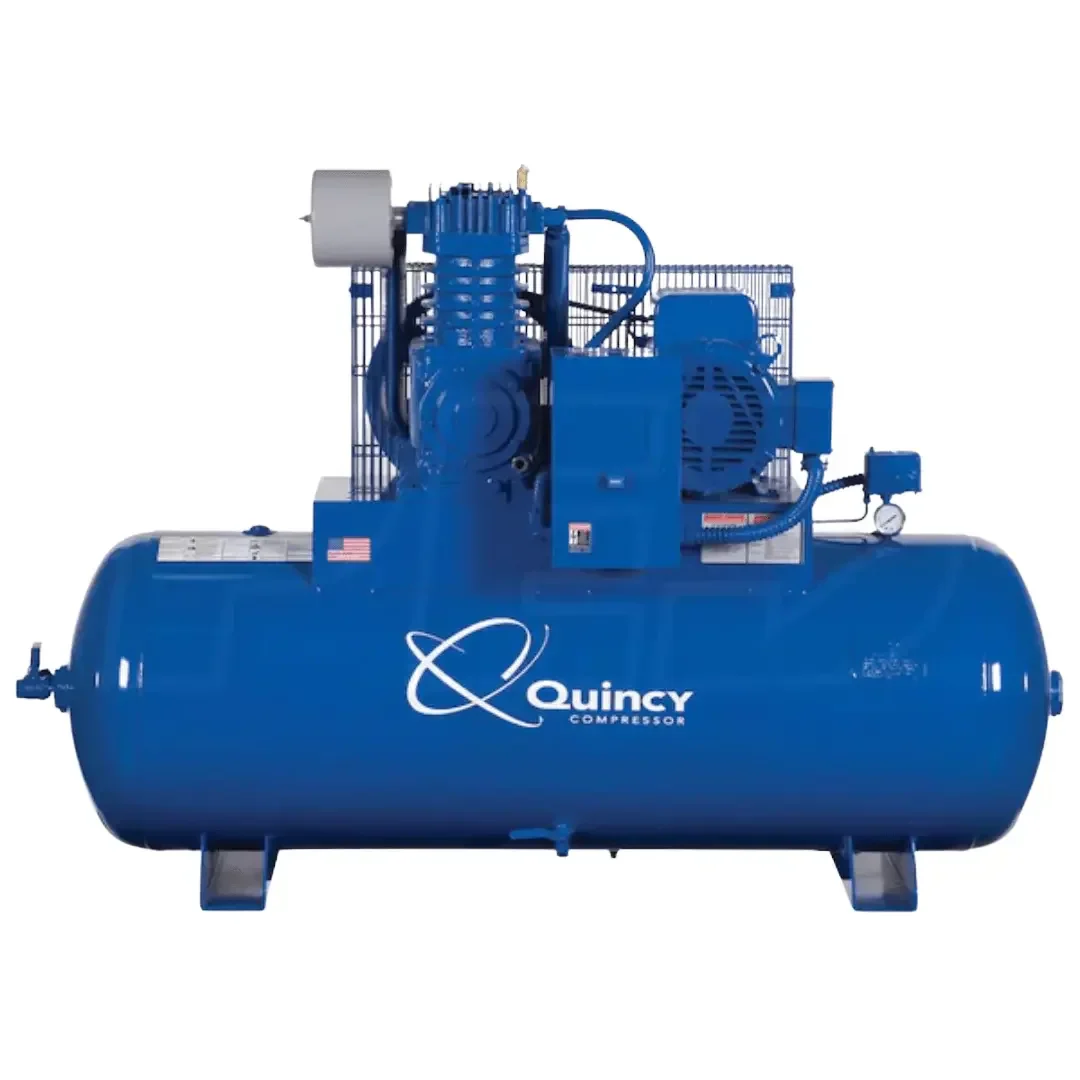

Quincy 473DS80HCB23 QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Quincy 473DS80HCB23 QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Built for industrial use, the Quincy QT Pro 7.5 HP compressor delivers around 22.6 CFM at 175 PSI via a splash-lubricated, two-stage cast-iron pump engineered for continuous operation in high-demand environments.
Driven by a 230‑volt three‑phase motor spinning at a controlled RPM, the unit minimizes vibration and heat buildup, which helps prolong internal components and lower sound output. The vertical 80‑gallon tank, certified for safety standards, ensures substantial air reserve during extended run cycles.
Heat is managed through aluminum head construction paired with finned intercoolers to promote efficient thermal transfer. A built-in condensate release system helps prevent moisture buildup, while an oil-level sensor automatically halts operation should lubrication fall below safe levels.
Product Features
- 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
- High Performance Cast Iron Belt Drive Pump
- 2-Cylinder Cast-Iron Design
- Large Balanced Cast Iron Fly Wheel
- High-Efficiency Finned Tube Intercooler
- Heavy-Duty Industrial Motor
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 22 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 7.5 |
Pump
| CFM | 22.6 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
Overview
| Weight | 740 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 70 Inches |
| Product Width | 23 Inches |
| Product Height | 47 Inches |
| Power Type | Electric |
Downloads
Brochure
Manual
Warranty
Original: $4,195.00
-65%$4,195.00
$1,468.25Product Information
