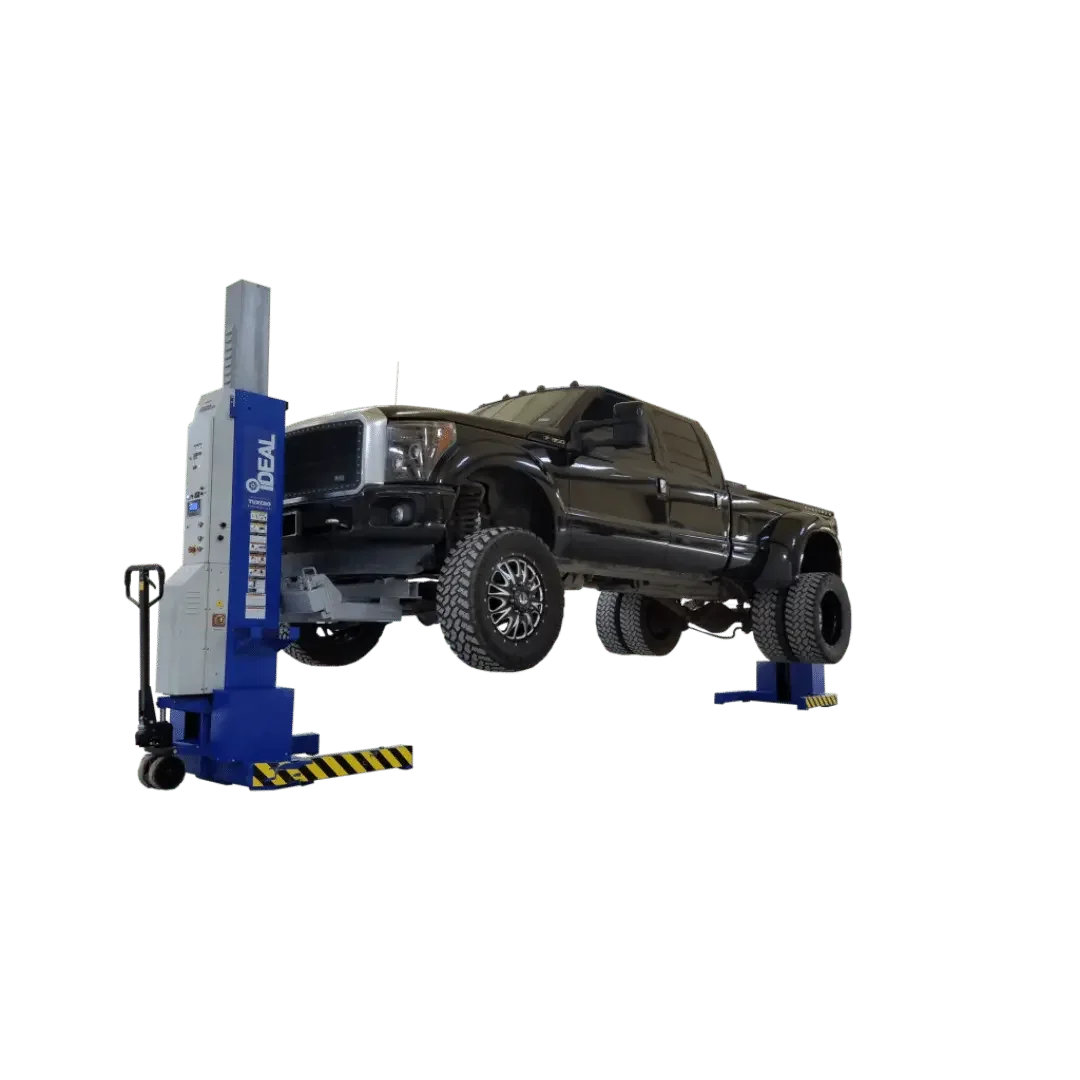

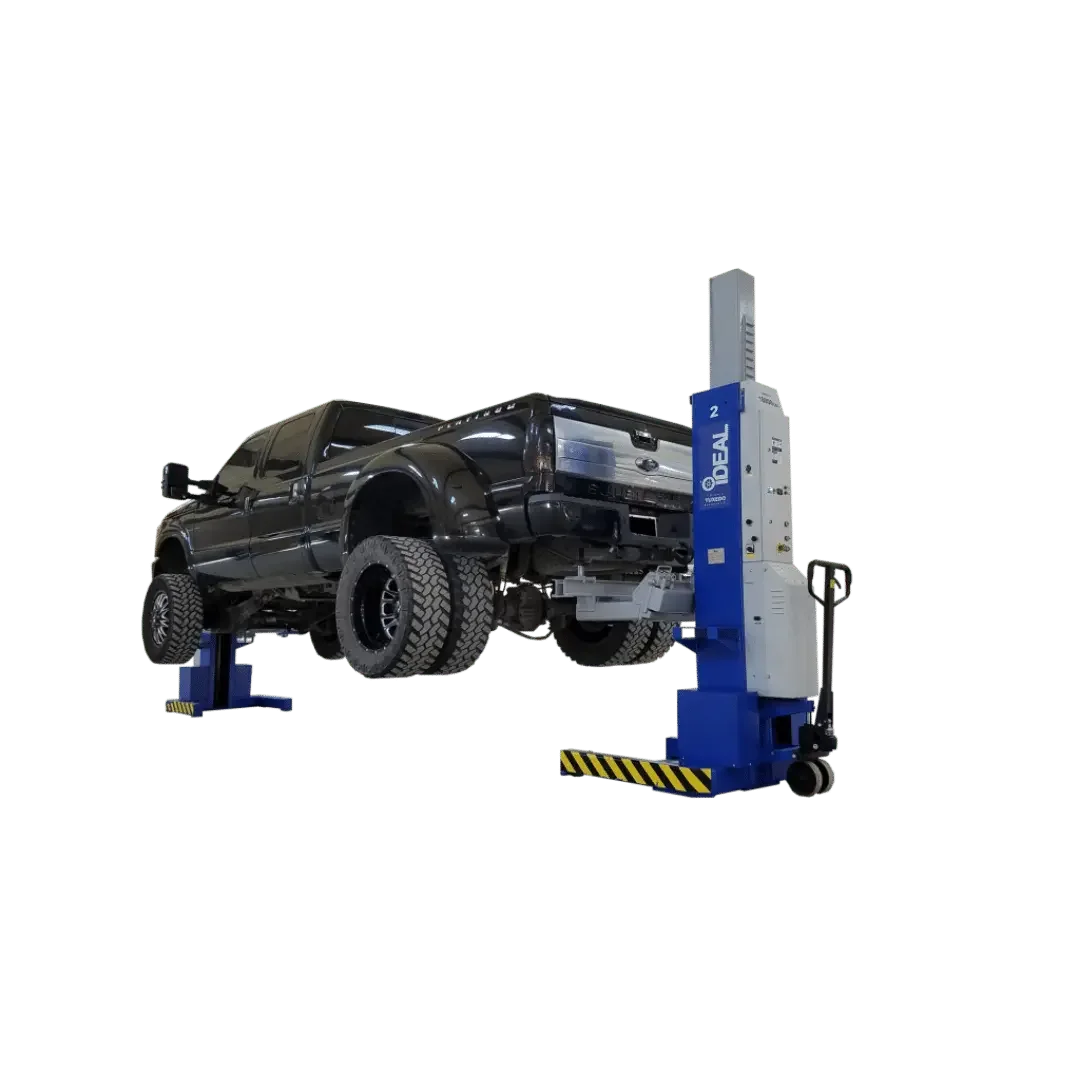

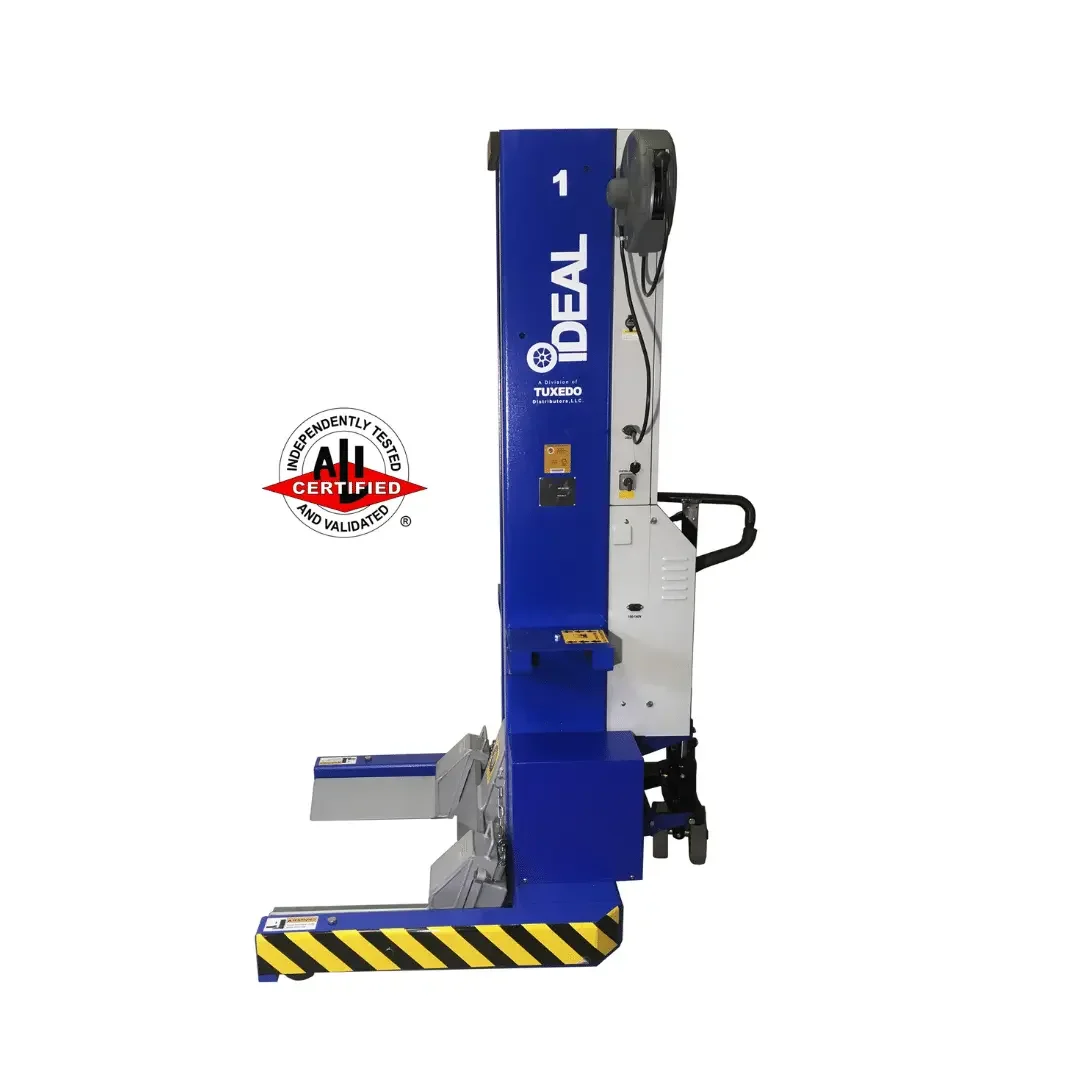

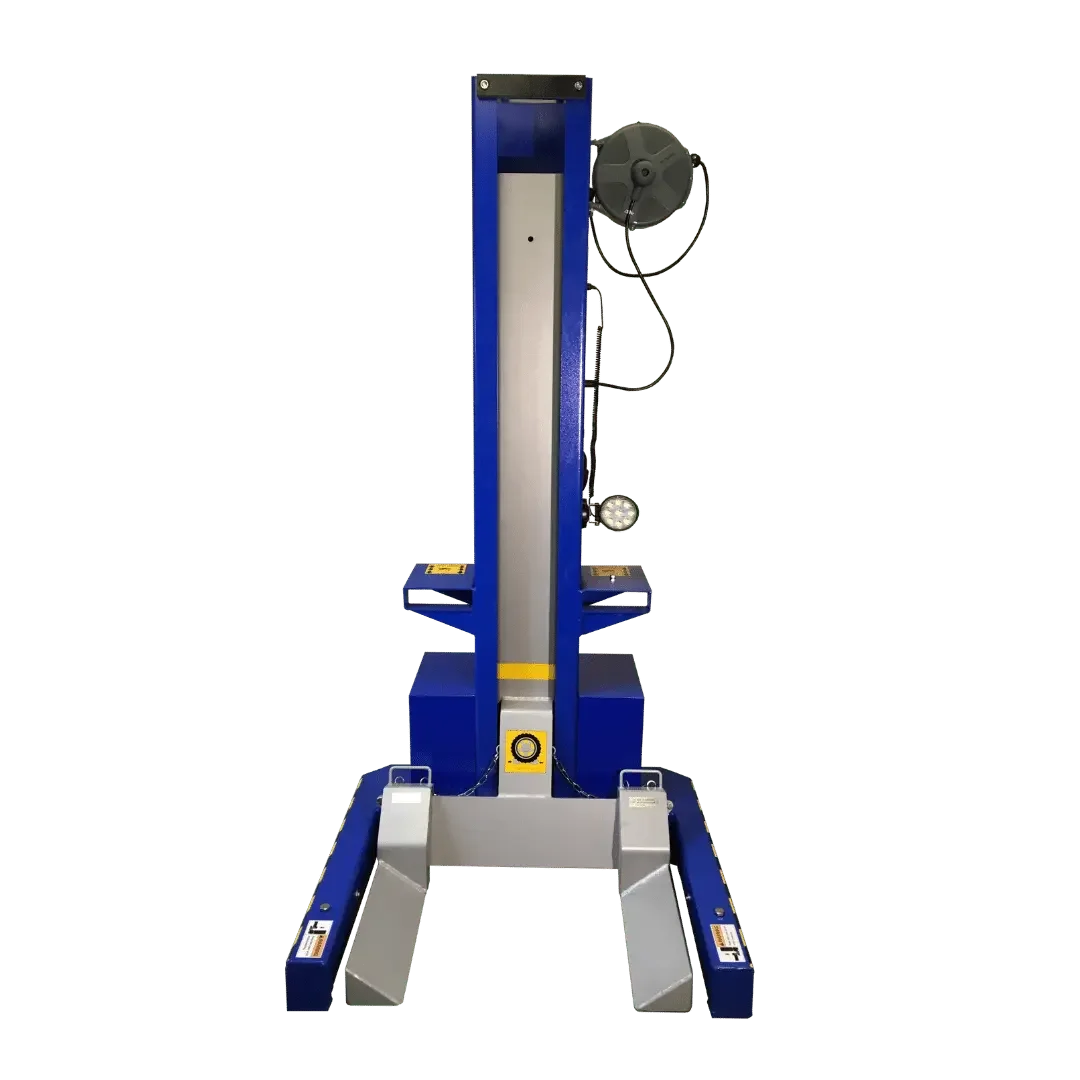

iDEAL MSC-18K-X-236 Heavy Duty Mobile Column Lift (Set of 2)
iDEAL MSC-18K-X-236 Heavy Duty Mobile Column Lift
Product Features
- 24VDC Battery Operation with Onboard Charging System
- Communication Cable with Retractable Cable Reels
- U-Shape Wiring Configuration for quick vehicle entry & exiting
- Convenient Operation from any Column
- Independent Mechanical Locking System
- PLC & Optical Encoder provides continuous synchronization for Columns

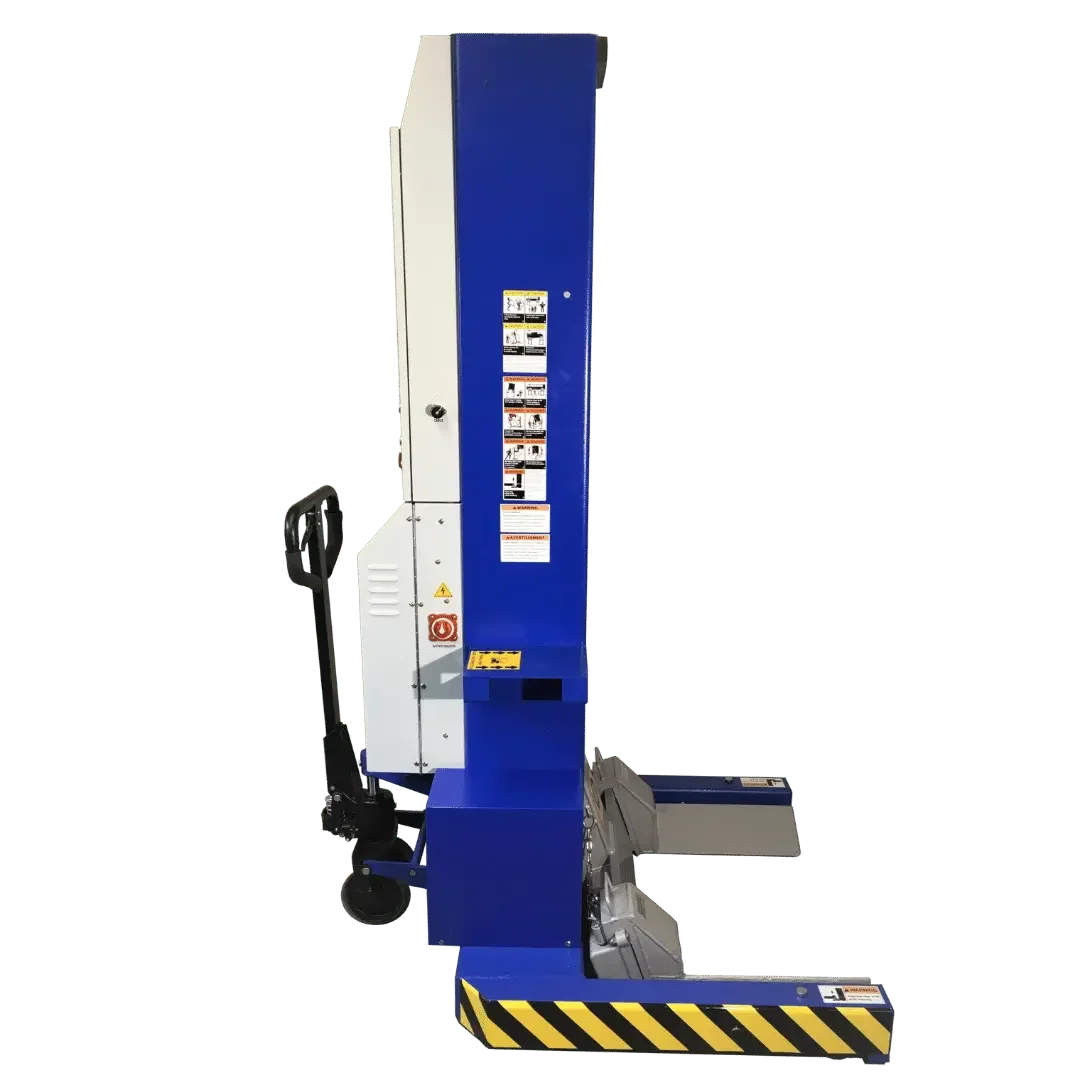

- Easily positioned with Pallet Jack type device with Poly Caster Wheels

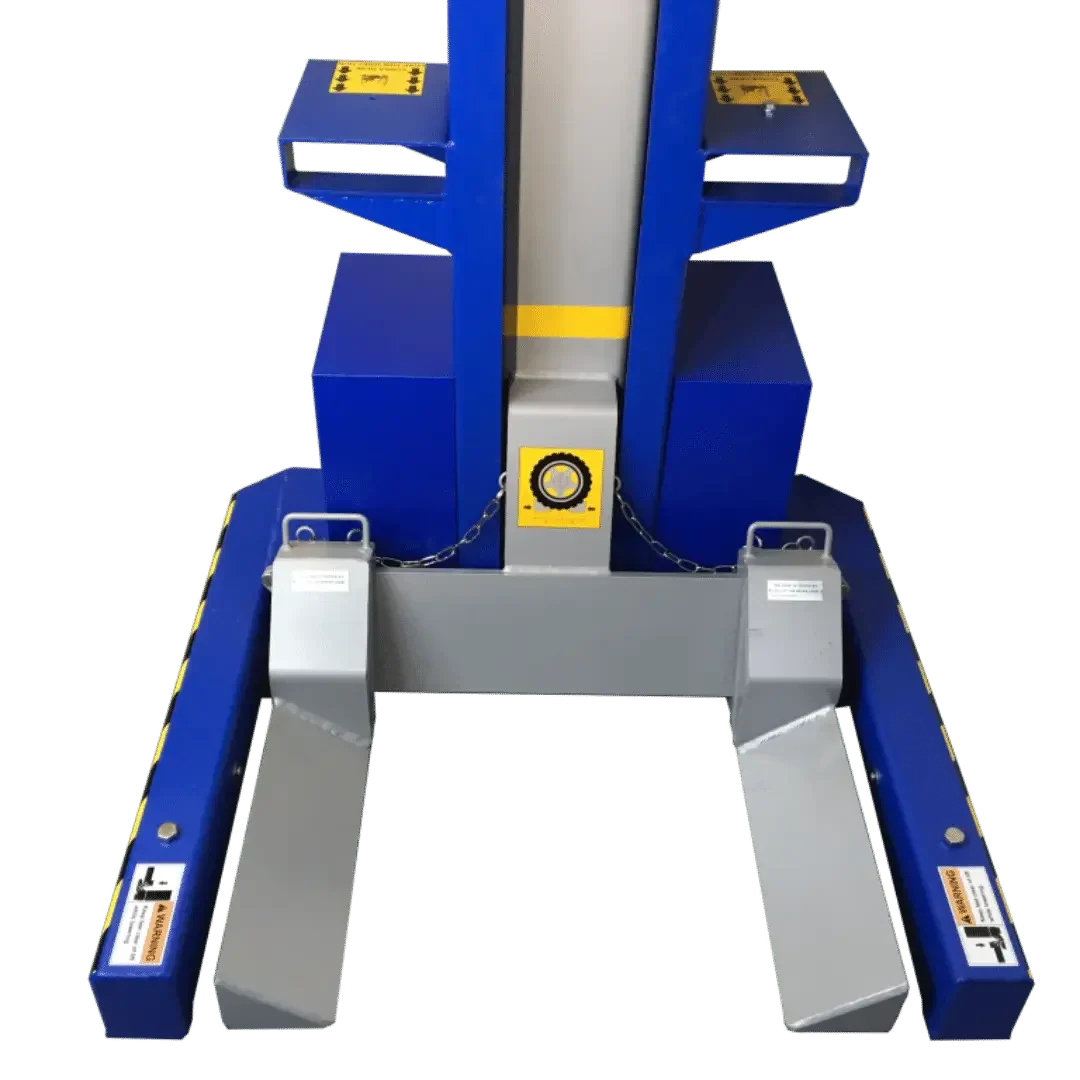

- Adjustable Lifting Forks for the widest range of Wheel Diameters
- Emergency Switch per each Column, provides the highest safety assurance
- Easy to use Master Control Panel for Individual or Paired Synchronized Operation
- LCD Screen with Keypad offers 'easy to read' visuals for Settings Lifting Height
- Conveniently stored out of the way when not in use to maximize work space
- Available in Two, Four or Six Column Configurations

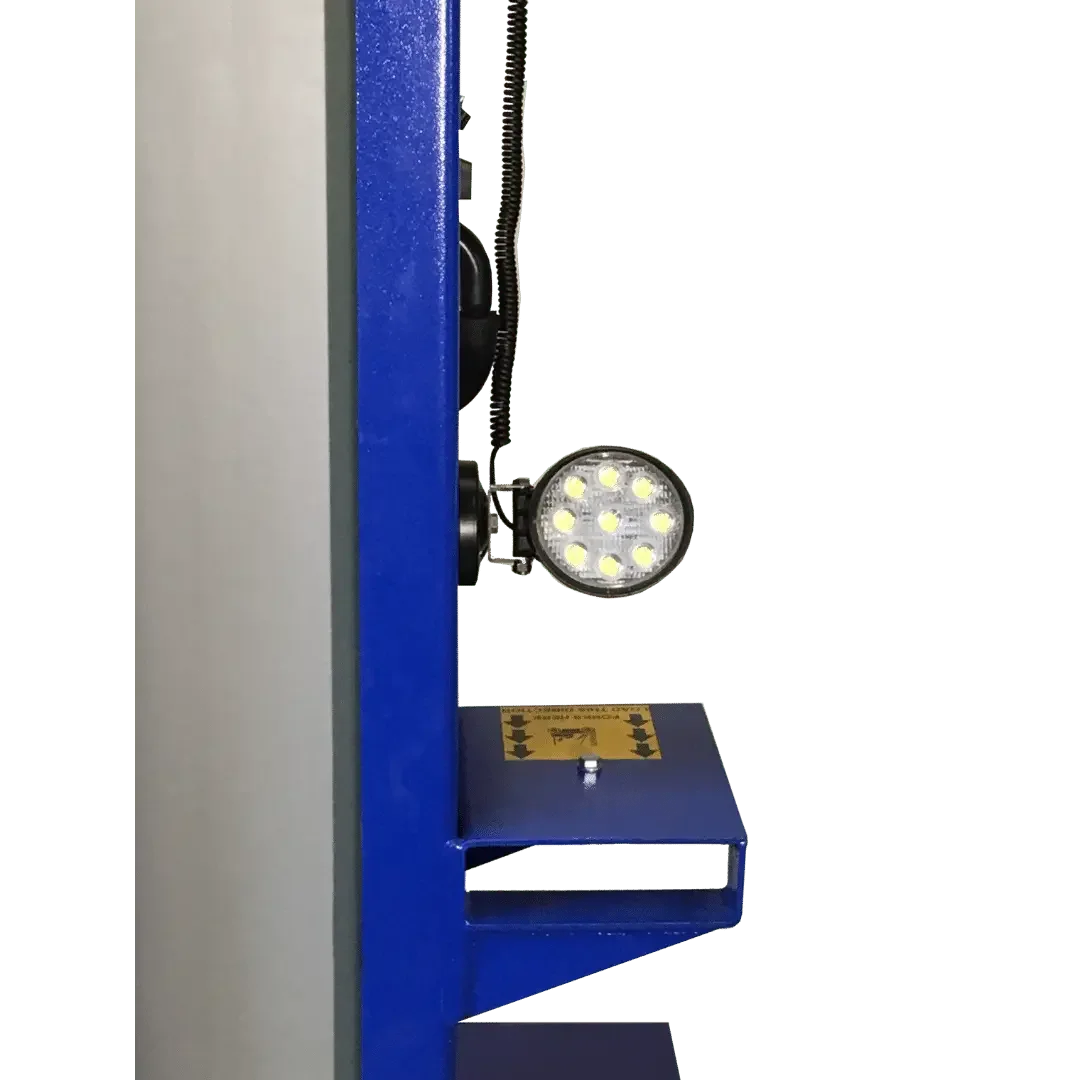

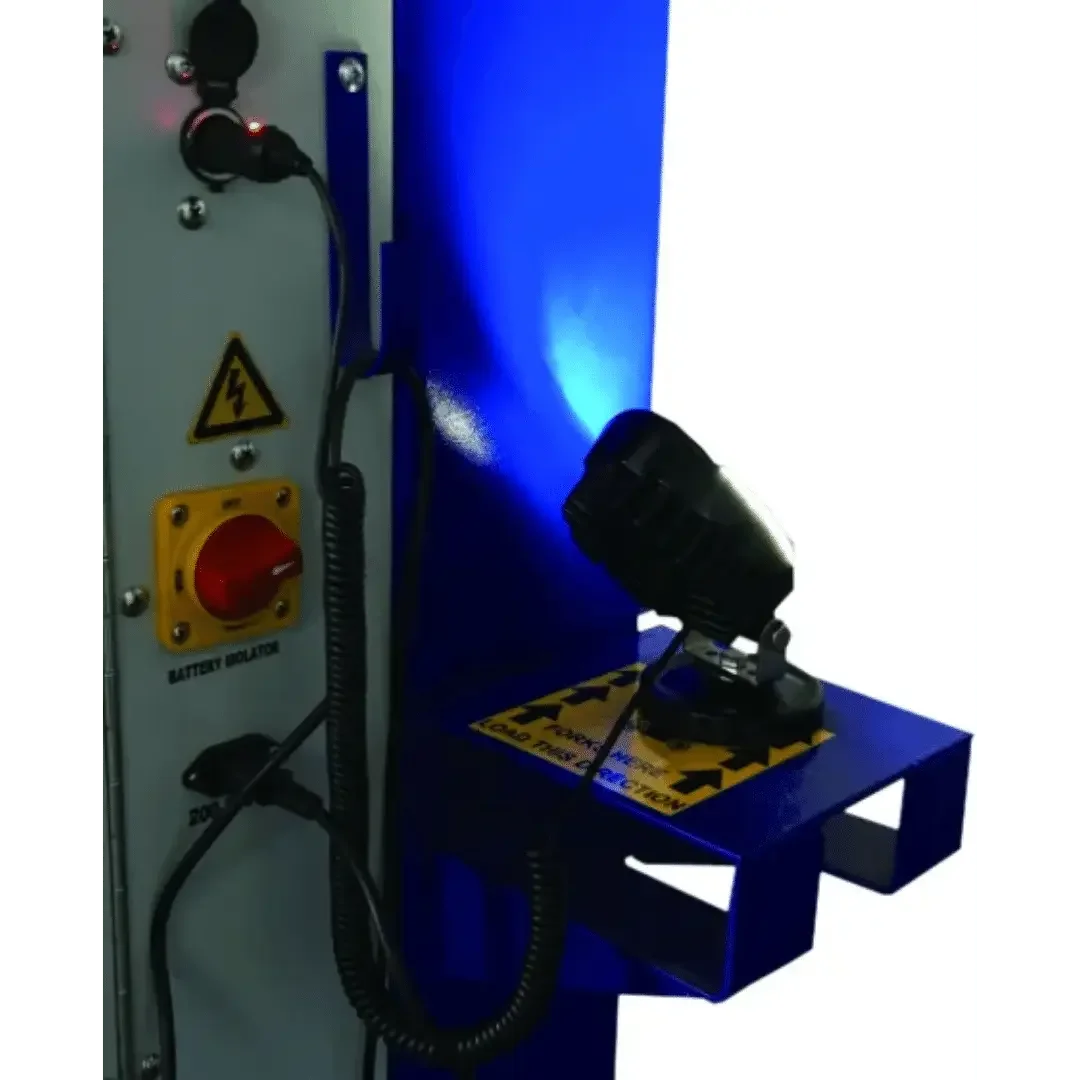

- New! LED Light with Magnetic Base!!
- New! Optional MSC ALI Certified Accessories available

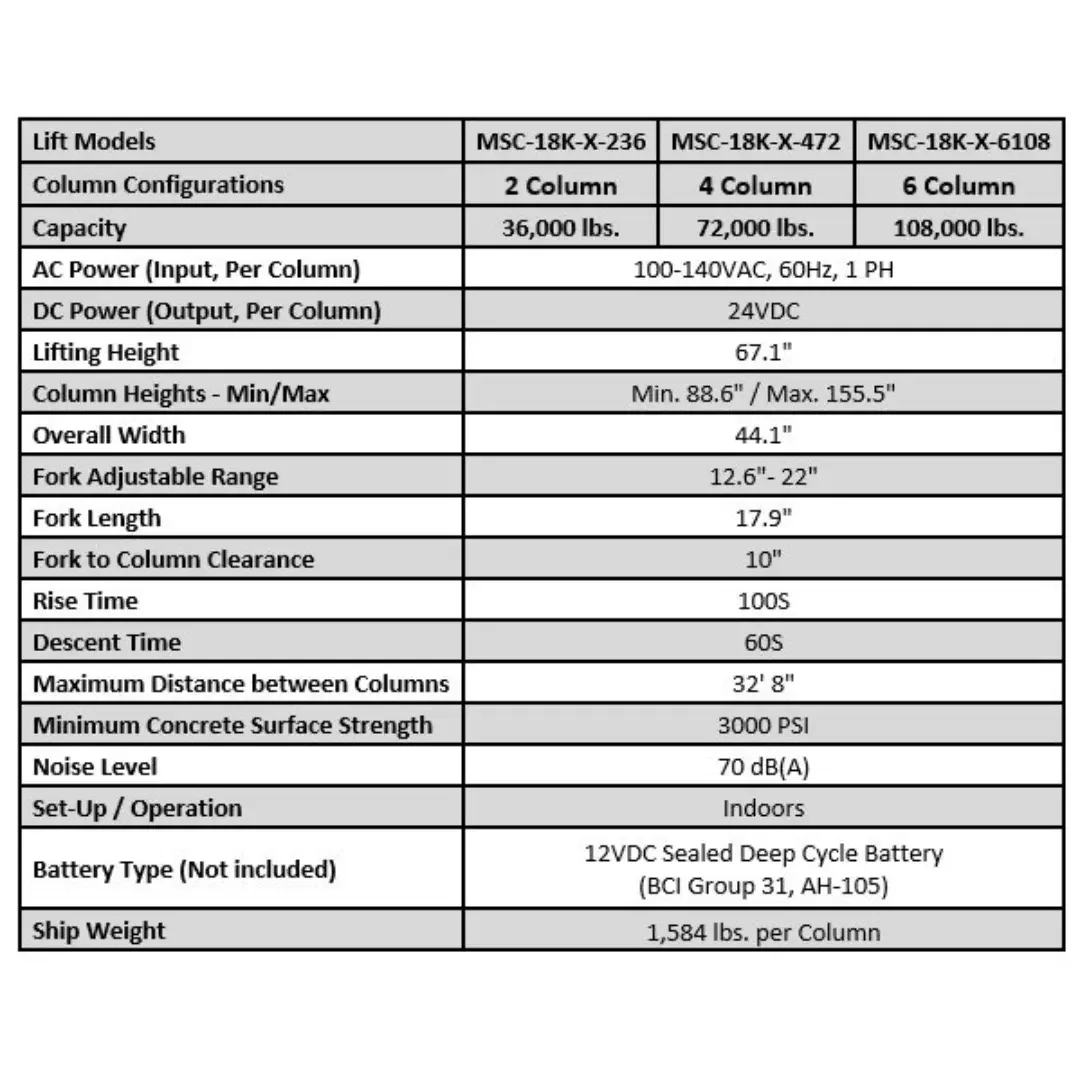

Product Specifications
| Lift Model | MSC-18K-X-236 |
| Column Configurations | 2 Column |
| Capacity | 36,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH |
| DC Power (Output, Per Column) | 24VDC |
| Lifting Height | 67.1″ |
| Column Heights – Min/Max | Min. 88.6″ / Max 155.5″ |
| Overall Width | 44.1″ |
| Fork Adjustable Range | 12.6″ – 22″ |
| Fork Length | 17.9″ |
| Fork to Column Clearance | 10″ |
| Rise Time | 100S |
| Descent Time | 60S |
| Maximum Distance between Columns | 32′8″ |
| Minimum Concrete Surface Strength | 3000 PSI |
| Noise Level | 70 dB(A) |
| Set-Up / Operation | Indoors |
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) |
| Ship Weight | 1,584 lbs per Column |
