Atlas Platinum Alignment Kit
Atlas Platinum Alignment Kit

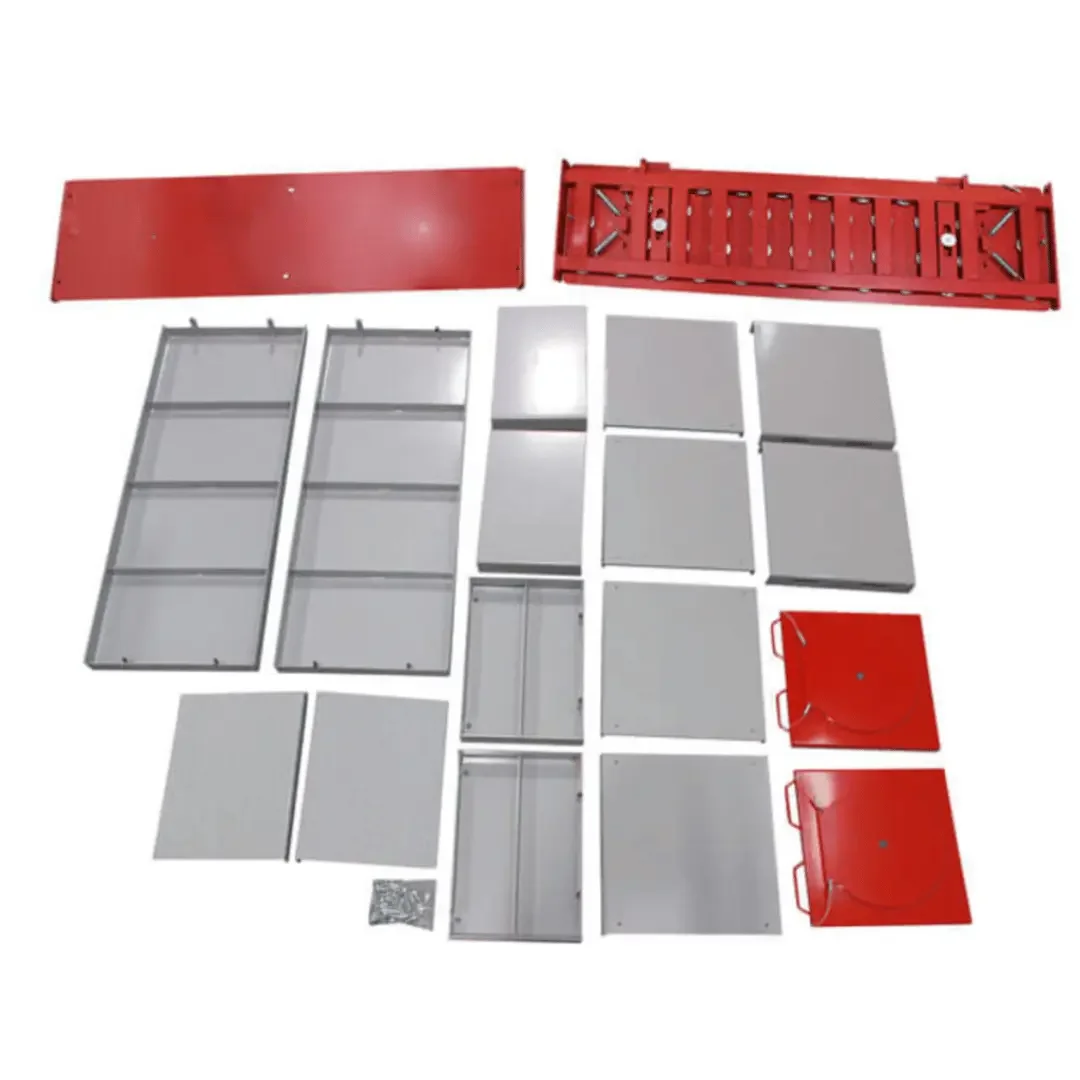

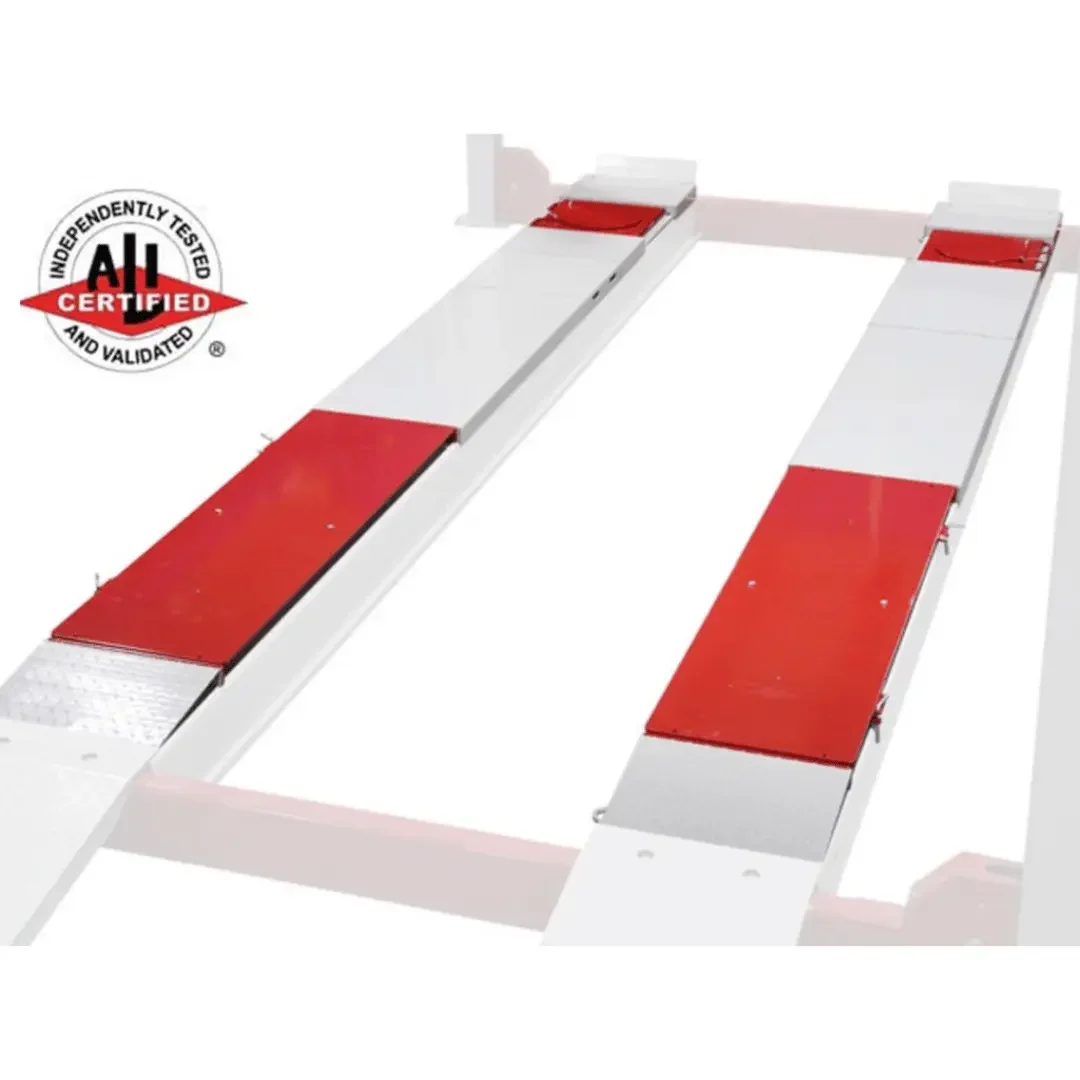

The AtlasĀ® Platinum wheel alignment kit includes a set of heavy duty ball bearing slip plates along with two heavy duty turntables and all other necessary ramps and spacers. The alignment kit bolts on to your AtlasĀ® Platinum PVL14 four post lift or other commercial grade 4-Post lift, turning it into a alignment lift.
Many permanent wheel alignment kits found on four post alignment lifts are recessed into the runways of the lift. It is very difficult to prevent dirt, chemicals, salt, and other foreign material from becoming embedded in the rolling or sliding mechanisms of the turn tables or the slip plates. The AtlasĀ® Platinum Alignment Kit is positioned above the runways to allow easy access for service and cleaning. Even if you permanently mount the AtlasĀ® Platinum Alignment Kit, it can still be removed periodically (simply remove the bolts) to allow a thorough cleaning and servicing of all moving parts.
Product Features
- Alignment Kit for AP-PVL14
- ALI Certified Accessory

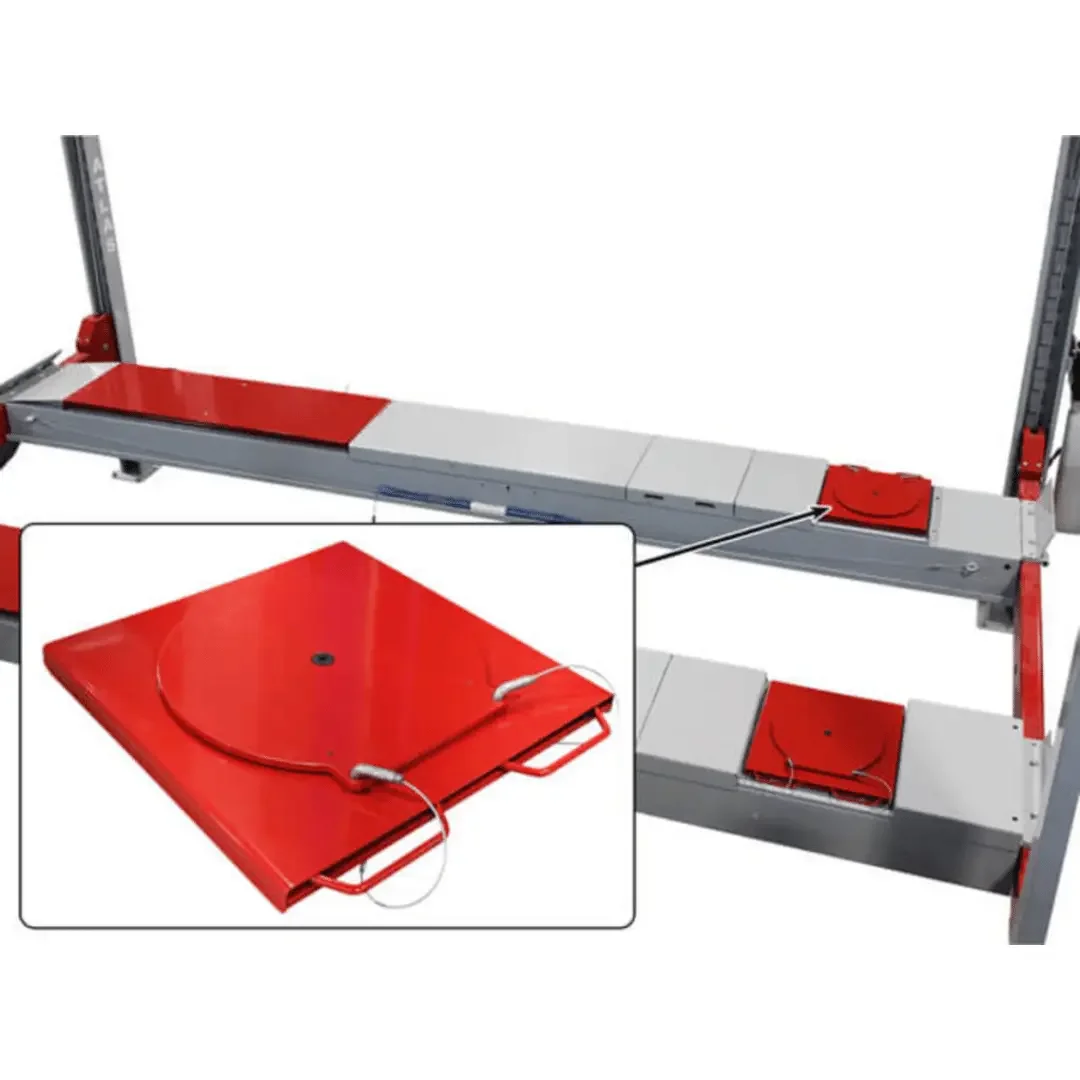

- Includes Slip Plates and Turntables

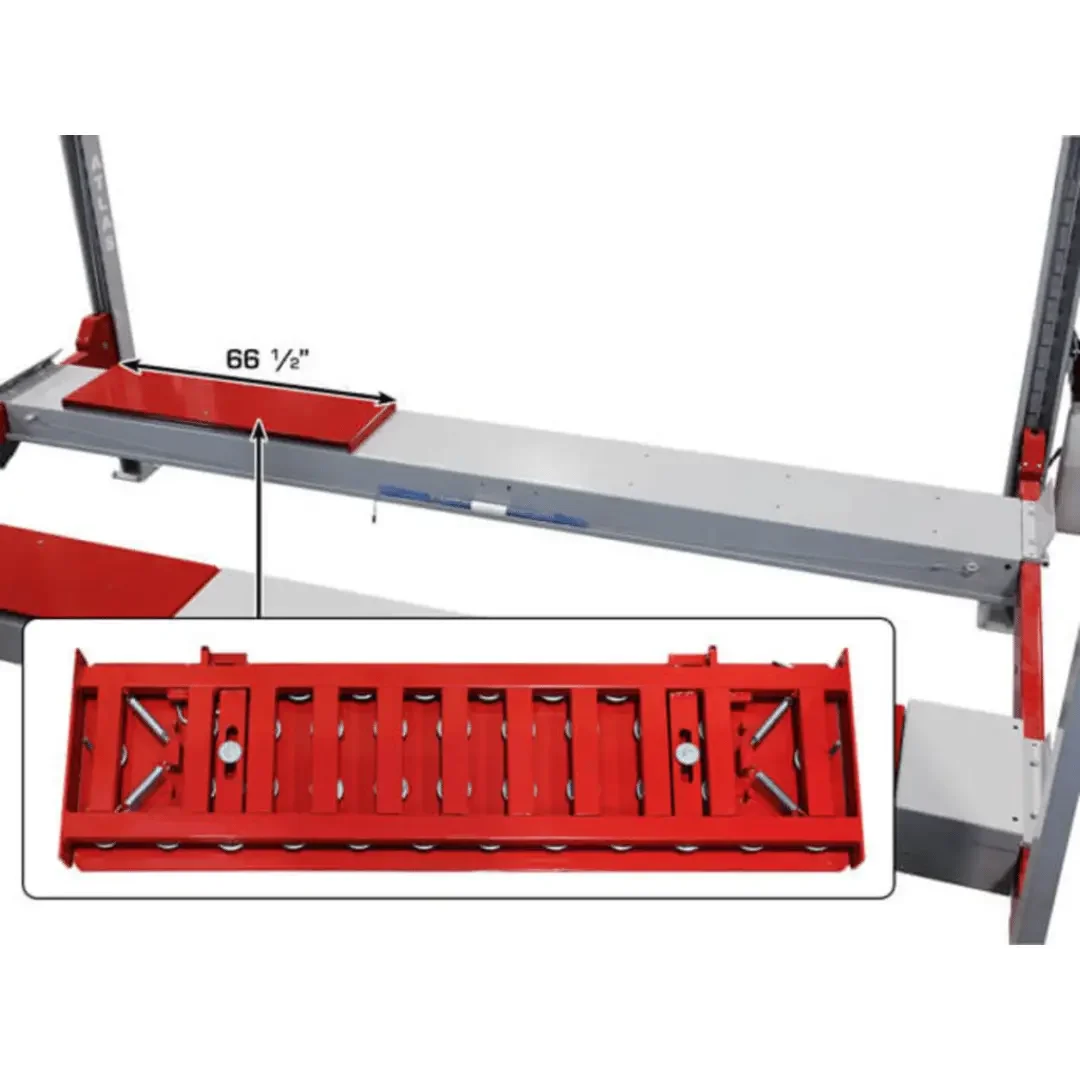

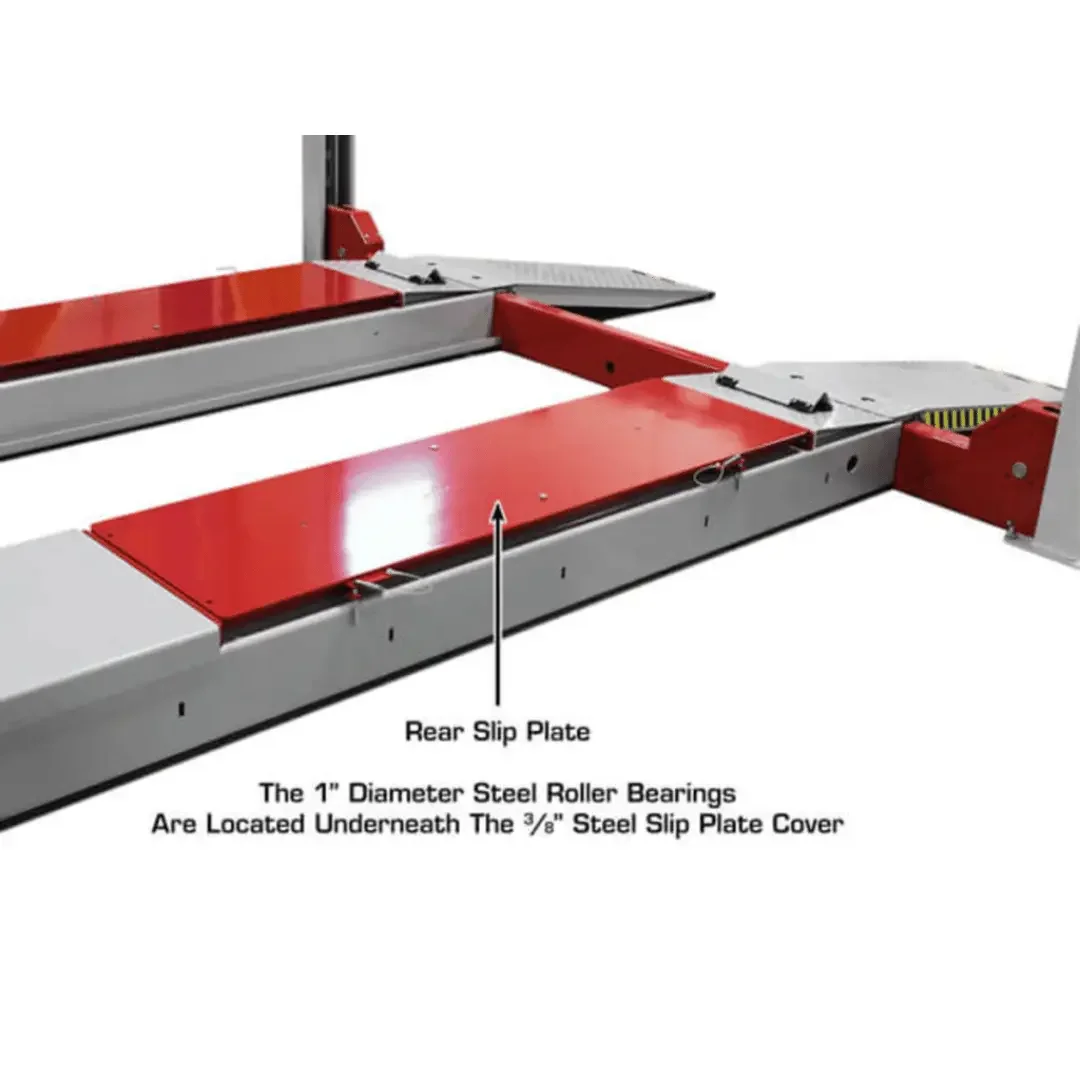

- 1" Diameter Steel Roller Bearings on rear Slip Plate
- Can be removed and added when needed
Product Specifications
| Model | Platinum Alignment Kit |
| Overall Length | 199 1/3" |
| Overall Width | 20 5/8" |
| Max Wheel Base | 154" |
| Minimum Turntable Recess | 1 1/2" (40mm) |
| Max Turntable Recess | 2" (50mm) |

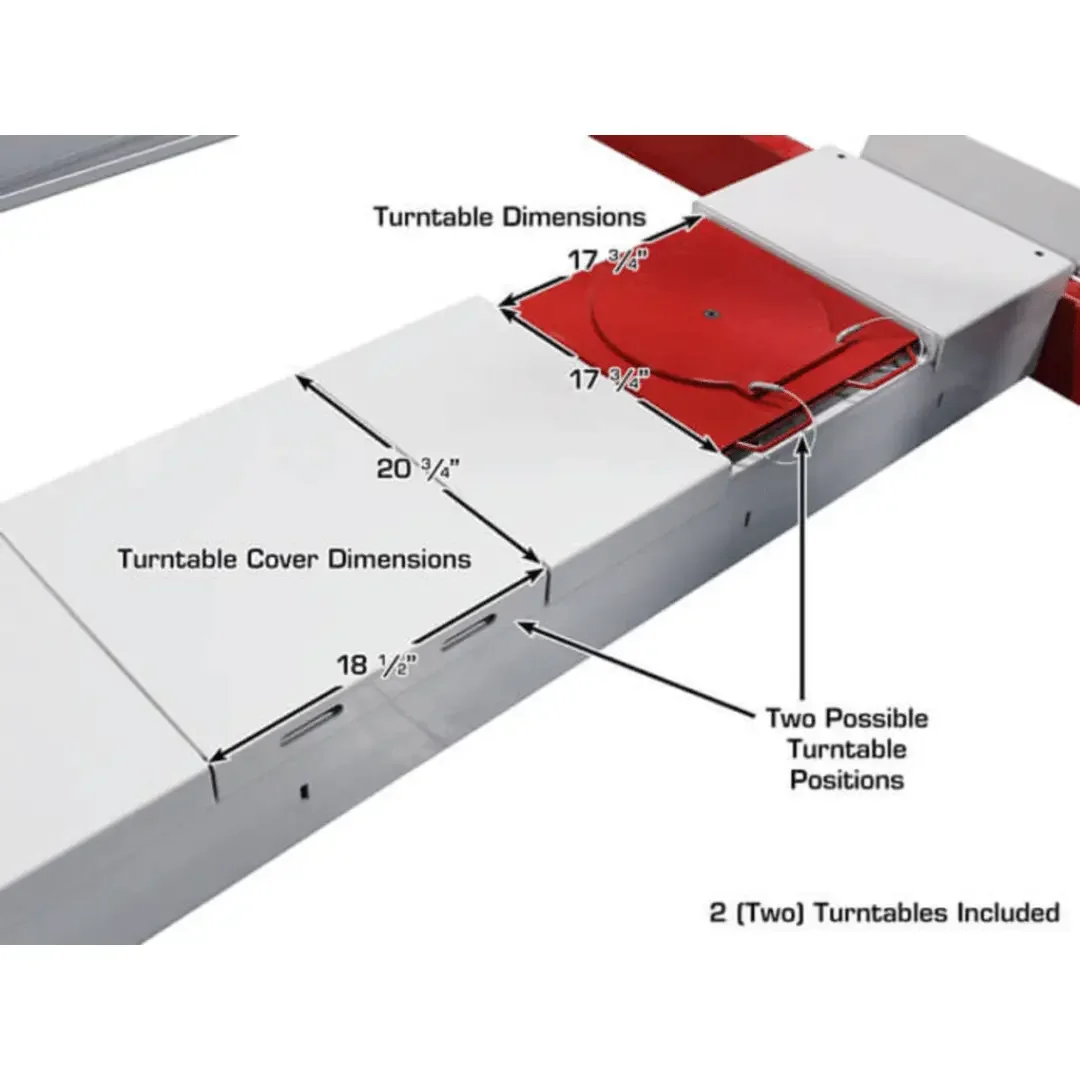

| Included Turntable Dimensions | 17" x 17" x 1 1/2" |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
Call, text, or chat with us if you have questions. - 866-774-7743
Original: $2,599.00
-65%$2,599.00
$909.65Product Information
